Sylvania KANON

Security with a seamless architectural appearance

Description

The KANON is a circular LED security luminaire that adopts a new design concept, providing visual impact, performance and versatility. The housing of die cast aluminium, utilises hidden fixing screws creating a simple and smooth surface appearance, while maintaining an IP66 protection and impact rating of IK08.

The 240v DALI dimmable driver is integral, with an electrical connection via an external junction box. The interconnecting cable is standard with bird proof conduit.

A NEMA 7 pin base is mounted on an adjustable junction box, allowing for accurate positioning of the P.E cell.

Security luminaire

The KANON is a circular LED security luminaire with a seamless architectural appearance, while maintaining an IP66 protection and impact rating of IK07.

Durability

Die-cast aluminium body, UV stabilized powder coated for durability and the interconnecting cable is standard with bird proof conduit

Functionality

Electrical connection via an adjustable external junction box. IP66 sealed junction box, optical and gear chambers plus complete with hood for optimal performance

Design

Circular LED security luminaire, providing visual impact, performance and versatility

KEY ADVANTAGES
  • Security lighting with architectural appeal
  • Energy efficient, high performance LED luminaire
  • Lumen efficacy: 120lms/w
  • Life: 60,000hrs at L70
  • System Wattage: 185W
  • CCT: 4000K, CRI: 70
  • Distribution: Symmetrical 60°
  • Integral 240v DALI driver
  • IP66 sealed junction box, optical and gear chambers
  • Die-cast aluminium body, finished with UV stabilized powder coat for durability.
  • Smart city enabled
  • Standard 10kV SPD

Characteristics

General Information

Recommended installation height (m)
4.0 -
12.0
Compliance

Electrical information

Electrical class
Nominal voltage
Surge protection (kV)
10
Control protocol(s)
Socket option(s)

Performance

Power consumption (W)
185.0 -

Optical information

LED colour temperature
Colour rendering index (CRI)
70

Housing and finish

Housing
Die-cast aluminium body
Optic
Protector
Tempered glass
Finish
Polyester texture finish
Standard colour
Tightness level
Impact resistance

Lifetime

All configurations

Operating conditions

Operating temperature range (Ta)
0°C - 40°C

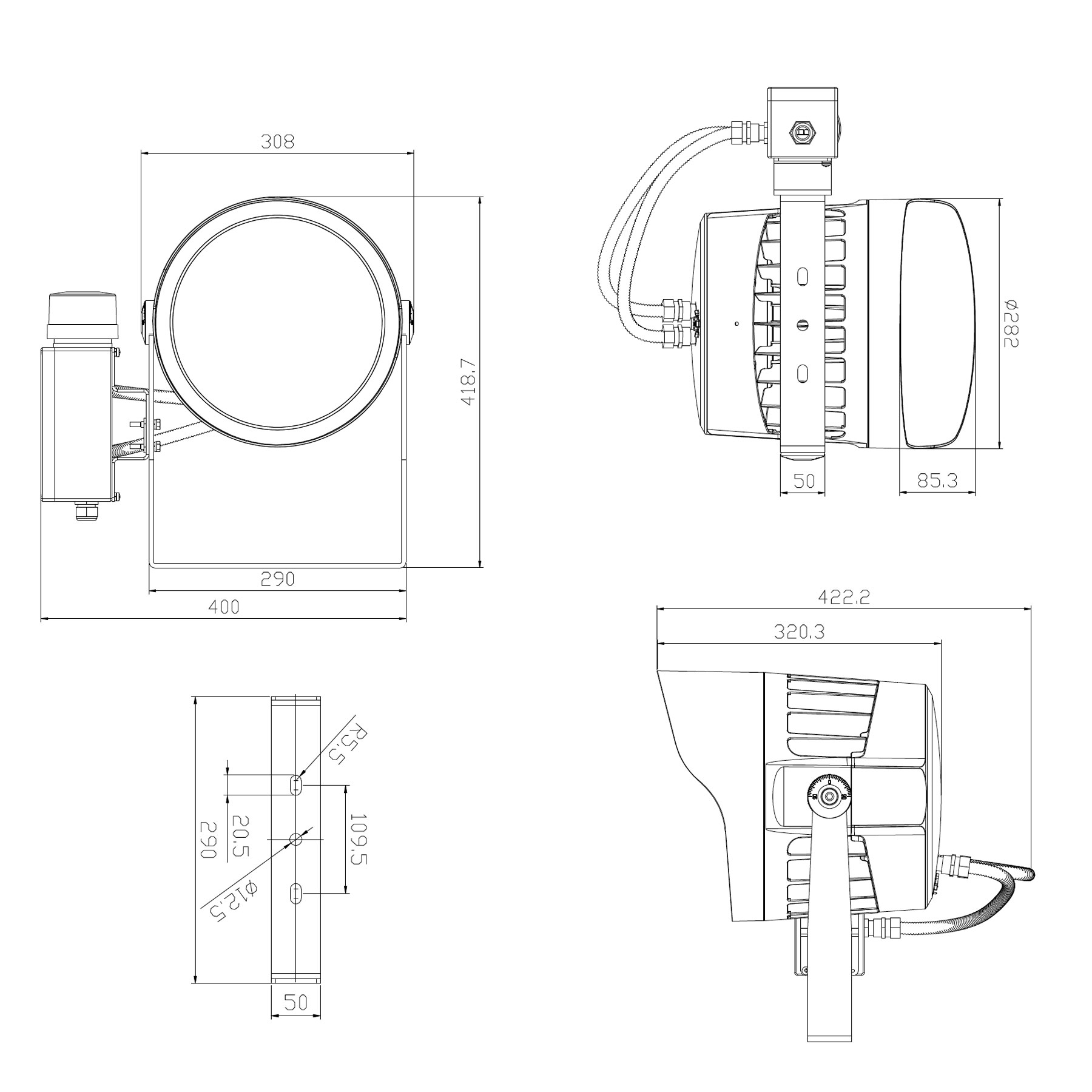

Dimensions and mounting

AxBxC (mm | inch)
422 x 400 x 418
Weight (kg | lbs)
12.9
Mounting possibilities
Trunnion

Control systems

Control options for Sylvania KANON

The following dimming options are possible for the Sylvania KANON outdoor LED luminaire:

  • DALI

As an option, the luminaire can be equipped with a 7-pin NEMA socket to be connected-ready for your future Smart City requirements.

Contact SCS for all your Smart City solutions
