Sylvania STREETLED MK4

High-Performance LED Street Light

Description

Hoofdwegen & woonstraten

Urban & residential streets
Fiets

Bike & pedestrian paths
Pleinen en voetgangersgebieden

Squares & pedestrian areas
Автостоянки

Car parks
Великі території

Large areas
Wegen

Roads & motorways

The Smart Choice for Urban Roads



The Sylvania STREETLED MK4 is a next-generation LED street lighting solution, engineered in Australia to meet Australian and New Zealand minor road lighting standards (AS1158-3.1 Category P). Designed for reliability, energy efficiency, and smart city readiness, the STREETLED MK4 is the ideal choice for councils, utilities, and developers looking for a future-proof lighting solution.



  • Tool-free access

    • Clips for tool-free access to Gear chamber for quick installation and maintenance




  • Easy installation and maintenance

    • Easy cable gland free access to gear chamber for quick installation and maintenance



  • Ready for the connected future

    • STREETLED MK4 is a smart, future proof luminaire designed to integrate seamlessly with sensors and control systems—today and tomorrow. With multiple control options, it enables dynamic day-to-night environments, minimises light pollution, maximises energy savings, and provides real-time monitoring and data insights



  • Adapter

    • 5º Tilt Adjustment Adapter for Spigots. Ensures that correct tilt can be achieved if the original pole outreach angle is incorrect.

KEY ADVANTAGES

  • High performance roadway luminaire – compliant with AS/NZS 60598.2.3 and AS/NZS TS 1158.6.

  • Optimised optics for maximum spacing and uniform illumination.

  • Durable and reliable – IP66 ingress protection, IK08 tempered glass cover, and 20-year design life.

  • Energy-efficient replacement for legacy fittings (70W HPS, 80W MV, CFL, T5).

  • Smart City ready with NEMA 7-pin and Zhaga Book-18 receptacles.

  • Flexible colour temperatures (4000K, 3000K, 2200K) for different applications.

  • Proactive maintenance with remote monitoring, dimming schedules, and error reporting.

Characteristics

Recommended installation height (m)
4.0 -
7.5
Compliance
RCM mark
Electrical class
Class I
Class II
Nominal voltage
220-240V – 50-60Hz
Surge protection (kV)
10
20
Control protocol(s)
DALI-2
1-10V
Control option(s)
Remote management
Photocell
DALI
Custom dimming profile
Socket option(s)
NEMA 7-pin
Optional Zhaga socket - ZD4i certified product
Sensor(s)
Motion sensor (optional)
PIR (optional)
Power consumption (W)
11.0 -
24.0
Luminaire efficacy - up to (lm/W)
147
LED colour temperature
Neutral White 740
Warm White 730
Warm White 722
Colour rendering index (CRI)
70
Upward Light Output Ratio (ULOR)
0%
Housing
Pressure die cast aluminium body
Protector
Tempered Glass
Finish
Natural Finish
Any RAL colour on request
Tightness level
IP24/IP66
Impact resistance
IK 08
All configurations
88,000h - L95
Operating temperature range (Ta)
-10°C up to +40°C

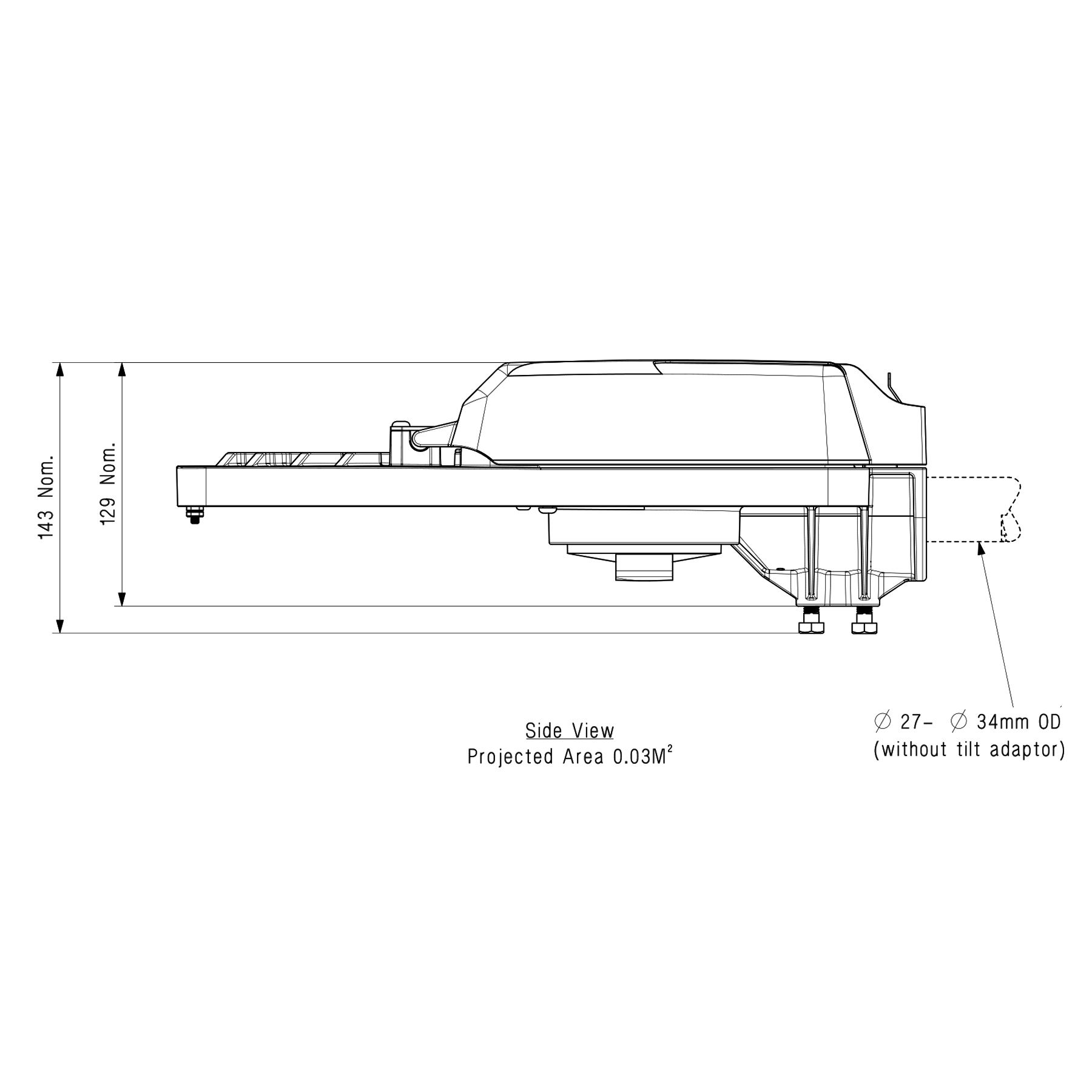

Dimensions and mounting

AxBxC (mm | inch)
396 x 208 x 143
Weight (kg | lbs)
3.4
Mounting possibilities
Side-entry penetrating – 28mm to 34mm
Download all specs

Maximise your solution with Schréder EXEDRA

Enhance your lighting infrastructure with Schréder EXEDRA, the ultimate luminaire control solution. This cutting-edge technology enables cities and utilities to maximise energy savings, optimise operations and maintenance, and decarbonise streets. Future-proof your urban landscape and harness the potential of smart streets. With Schréder EXEDRA, you're not just upgrading your lighting - you're investing in a brighter and more sustainable future for your community.

Discover Schréder EXEDRA

Control systems

Control options for Sylvania STREETLED MK4

The following dimming options are possible for the Sylvania STREETLED MK4 outdoor LED luminaires:

  • DALI 2
  • D4i
  • 1 - 10V
  • Remote Management

The luminaire is equipped with a 7-pin NEMA and/or Zhaga socket to be connected-ready for your future Smart City requirements.
